X38 3-line Decon Shower System
X38 3-line Decon Shower System
X38 3-line Decon Shower System
X38 3-line Decon Shower System

X38 3-line Decon Shower System

Peke Safety

X38 3-line Decon Shower System

Part #: 16-100-10
Peke Safety
Call us at 1-800-277-1637 for pricing and other details, or use the contact form below. We'll get back to you within 24 hours.

Description

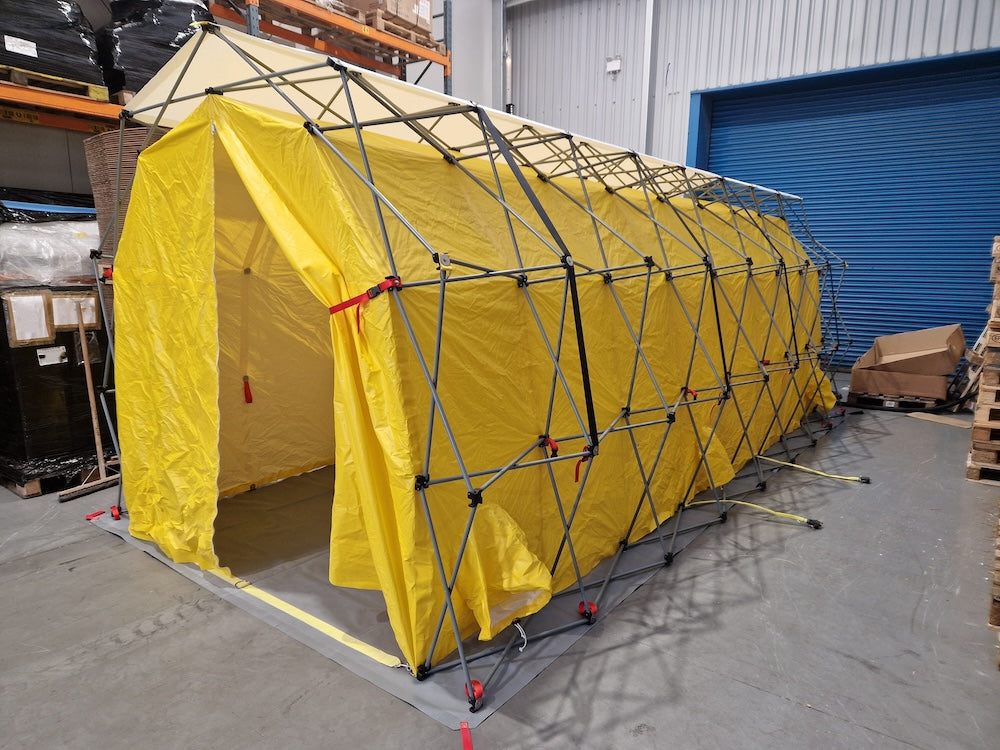

The X38 Decontamination Shower System provides three shower lines for the effective decontamination of multiple ambulatory or non-ambulatory casualties as well as larger emergency response teams.

Small undress and redress areas at each end accommodate the pre-shower doffing of contaminated clothing and post-shower donning of clean clothing inside the shelter. The articulating frame shower can be set up by only two to four people in just minutes.

The shelter itself includes:

  • 2 x Active Curtainswith integrated water booms and nozzles
  • 2 x Isolation Curtainswith tie downs
  • 4 x Privacy Curtains
  • 1 x Interior Catch Basin
  • 2 x Zippered Clothing Portsper Side
  • 1 x 6” diameter Snorkeled Portper side
  • 1 x 14” diameter Snorkeled Portper side
  • 2 x 5–Panel Zippered End Doorswith Velcro strips
  • 1 x Ground Cloth
  • 1 x Anchor Kit
  • 1 x Repair Kit
  • 1 x Hose Adaptor Kit
  • 1 x Transport Bag

The shower system includes:

  • 1 x X38 3-Line Decontamination Shelter, 20′ L x 11′ W
  • 1 x Interior catch basin
  • 4 x Hand Sprayers
  • 1 x Shower Maintenance Kit
  • 1 x WH-166 Flash Water Heater
  • 2 x Water Hose, Decon, Nylon F-F Camloks, 20ft., (1 x Red 1 x Blue)
  • 1 x Water Pump, Waste, submersible, 110v, 30gpm,
  • 2 x Light Fixtures
  • 2 x Litter Conveyors
  • 2 x Transfer Boards
  • 8 x Floor Risers, Poly, Rigid, 1.75″ x 24″ x 48″

Still have questions? Contact Us

Core benefits
  • External articulating frame manufactured from corrosion-resistant anodized aluminum
  • Design facilitates rapid deployment as the shelter can operate with 30% of frame missing or broken
  • UV stable, fire retardant and chemical resistant fabric on interior that protects exterior frame from contaminants and expedites cleanup
  • Thermostatic temperature valve and gauge for easy water temperature management
  • Integrated interior berm covers entire floor of decon area and contains the waste water runoff
  • On / off capable shower nozzles on interior fabric saturate patients with 360º of spray

Dimensions

Interior

Length: 19.5 ft (5.94 m), Width: 10.75 ft (3.28 m), Height: 8 ft (2.44 m)

Exterior

Length: 21.41 ft (6.52 m), Width: 11.43 ft (3.48 m), Height: 8.91 ft (2.71 m)

Stored Cube

Width: 3.75 ft (1.14 m), Height: 3.75 ft (1.14 m), Depth: 3.75 ft (1.14 m)

Weight

Shelter Weight

215 Lbs (65.77 Kgs)

Shipping Weight

358 Lbs (145.15 Kgs)
